TopFlyTech T8803A

Topflytecht8803a

Connection Parameters

Server Address server.gp-s.net
Server IP 136.244.102.118
Server Port 47744
Desteklenen Fonksiyonlar
95%
Otomatik Aktivasyon
100%
Sunucu Uptime
99%

Bu cihaz sistemimiz ile uyumludur, Eğer bu model bir cihaza sahipseniz cihazınızı online otomatik aktivasyon ile sistemimize transfer ederek, GP-S.Net ‘in ekonomik tarifeleri ile tasarruf eder ayrıca tüm özelliklerinden ve mobil uygulamalarından faydalanabilirsiniz.

Açıklama

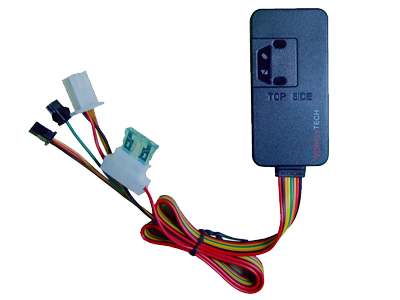

TopFlyTech T8803 ?A? is a basic model for vehicle tracking, a simplified modification of T8803 ?PRO?. It is designed for common applications and might be a good choice for private car owners and budget fleet tracking without special requirements.
Package content
The package contents:

GPS tracker
One digital input extension line (170 cm)
Sponge double-side adhesive tape
Power supply extension line (170 cm)
Also as an option, manufacturer offers

Engine block relay
Microphone and SOS line
Location and tracking
T8803A is embedded with GPS and doesn?t have support of GLONASS and alternative systems. It neither supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

As a basic model in series, T8803A has just simple time/interval tracking.

Mobile networks
With Quad-band GSM 2G module T8803A can be operated all over the world.

Power supply
External power supply might be 6-36V, which makes it possible to install T8803 both on cars and vans.

T8803A also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).

Local and remote management
TFT T8803A tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication
T8803 has two LEDs:

Red LED indicates GSM/GPRS mode[/list] Blue LED indicates GPS reception[/list] The LEDs light goes out automatically in five minutes after the device is switched on.

General information
Purpose Vehicle
Installation Professional
Housing
Size 80.4×40.2×12.5 mm (3.17×1.58×0.49 in)
Weight 70 g (2.47 oz.)
GNSS Location
GPS
Internal antenna (GNSS)
External antenna (GNSS)
Assisted GPS
Connectivity
Cellular network type GSM Quad Band
Cellular network generation 2G
Internal antenna (Connection)
External antenna (Connection)
Interfaces
ACC/Ignition input Feature already supported
Hardware features
Built-in battery
Battery capacity 465 mAh
Emergency button Optional Feature already supported
Detach sensor
Non-volatile memory
Hardware extras
Fuel level sensor reading
Driver ID reading
Emergency button
Tracking features
Tracking modes Continuous
Smart power consumption
Odometer
ECO driving
Events monitoring
External power cut off
Battery low Feature already supported
Device switched on/off Feature already supported
Self monitoring
Network signal level
GNSS signal level
GNSS satellites fixed
External power source voltage
Remote management
Server connection setup over SMS Feature already supported
Remote device configuration Yes (over GPRS)
Forced GNSS location update over SMS
Message exchange format BINARY
Firmware update OTA
Certification
CE
FCC

Bu cihazı başka bir yerden satın aldım sisteminizi kullanabilirmiyim?

Evet, cihazınızı kolaylıkla sistemimize aktarabilir ve mobil uygulamalarımız dahil tüm özelliklerinden faydalanabilirsiniz.

Cihazımı nasıl GP-S.Net ' e transfer edebilirim?

Bu konuda endişelenmeyin GP-S.Net’ in benzersiz otomatik aktivasyon özelliği sayesinde herşey online ve otomatik olarak gerçekleşir.

Aktivasyon yada transfer işlemi ne kadar sürer?

Sadece bir kaç dakika sürmektedir, cihazınızı sökmeniz yada bilgisayara bağlamanız vb. işlemler gerektirmez, otomatik aktivasyon çok kolaydır, herhangi bir teknik bilgi gerektirmez ama olurda yardıma ihtiyaç duyarsanız bizimle irtibata geçin tüm işlemleri sizin adınıza yapabiliriz.
