Coban GPS104

Coban Gps1041

Connection Parameters

Server Address server.gp-s.net
Server IP 136.244.102.118
Server Port 47750
Supported Functions
95%
Automated Activation
100%
Server Uptime
99%

This product is compatible with our system, if you bought new or already using another gps tracking software you can transfer your device to our system online automatically

Description

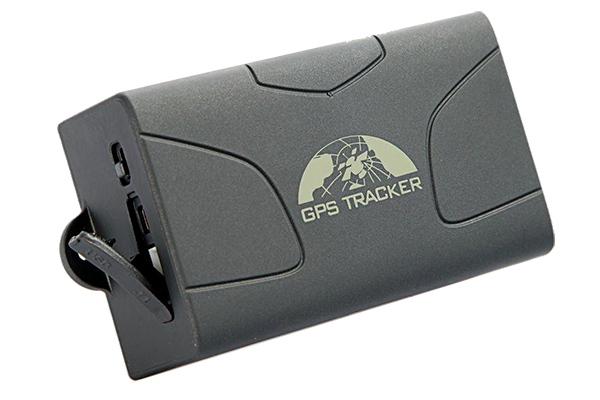

Coban GPS104 is a portable GPS device for tracking cars, trucks, trailers, cargos and other valuable assets. It?s remarkable for its powerful magnets, large battery and waterproof shell ? making it easy to install on almost any asset, especially with a metal surface, within a few seconds.

PACKAGE CONTENTS
Package contents include:

AC Adapter
Car lighter adapter
External GPS Antenna
External GSM Antenna
4-pin harness
Engine block relay
LOCATION AND TRACKING
GPS104 model is embedded with GPS chip and internal antenna, while external antenna can be connected optionally. It doesn?t support GLONASS and alternative GNSS systems, either Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-positioning).

GPS104 offers several tracking modes:

Track with limited times upon time interval (tracker device will report the latitude & longitude at set intervals of time)
Track with unlimited times upon time interval (tracker will reply the latitude & longitude continuously at 30 seconds intervals)
Smart track upon time and distance interval (tracker will locate upon both the pre-set time and distance.)
Also, the tracker supports turnings. It will update the positions automatically to web server once the vehicle changing driving direction over pre set angle (30 degrees) to form a smooth trajectory consistent with the actual road, this function is only effective in GPRS mode.

MOBILE NETWORKS
With Quad-band GSM 2G module mobile devices can be operated all over the world. GPS 104 is embedded with internal GSM antenna, as well as with the outlet for external antenna.

POWER SUPPLY
As being said, Coban GPS104 is noteworthy for its rechargeable battery. Its capacity of 6000 mAh ensures up to 4 months of work in the interval tracking mode.

GPS104 offers several sleeping mode options:

?By time? ? tracker falls asleep in 5 minutes after issuing the command to sleep (and no other command is sent);
?By shock? ? tracker turns GPS module off if no vibration is detected within a certain period of time;
?Deep sleep by shock? ? similar to previous, but also switches off GSM module.
?By schedule? ? GPS and GSM modules are disabled; device wakes up every H hours to update its position (H is an integer value, 3 digits from 1 hour to 30 days max)
The external power supply might be in the range of 12-24V, making it possible to install both on cars and big trucks.

LOCAL AND REMOTE MANAGEMENT
GPS104 tracker can be fully controlled over GPRS, including the configuration of tracking modes. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

You can also configure GPS104 from a PC, but you will require a special USB-cable, which is not included into a standard package.

LED INDICATION
GPS104 has three LEDs

Red LED indicates backup battery charge
Green LED indicates GSM/GPRS mode
Blue LED indicates GPS reception
OTHER NOTES
GPS104 doesn?t have any detach sensor, thus it won?t report about removal from the tracked asset.

GPS104 has one input reserved for emergency button. There is also an output controllable over GPRS and SMS, reserved for engine block feature.

The device has no built-in memory to record location data when no GSM/GPRS is avalaible and connection to server isn?t established. However, there is a slot for micro SD card

General information
Purpose Vehicle
Installation DIY

Housing
Size 94x60x38 mm (3.7×2.36×1.5 in)
Weight 300 g (10.58 oz.)
Waterproof class Optional
Magnet mounting

GNSS Location
GPS
Internal antenna (GNSS)
External antenna (GNSS) Optional
Assisted GPS

Connectivity
Cellular network type GSM Quad Band
Cellular network generation 2G
Internal antenna (Connection)
External antenna (Connection) Optional

Interfaces
RS232 interface
RS485 interface
ACC/Ignition input   Feature can be supported upon request
Discrete inputs   Feature already supported
Impulse inputs
Frequency inputs
Number of inputs (all types) 1
Outputs   Feature already supported
Number of outputs 2

Hardware features
Built-in battery
Battery capacity 6000 mAh
Emergency button   Feature already supported
Detach sensor
Accelerometer
Engine block relay   Feature can be supported upon request
Non-volatile memory Optional

Hardware extras
Fuel level sensor reading   Feature can be supported upon request
Fuel temperature sensor reading
Driver ID reading
Voice listening   Feature can be supported upon request
Engine block special control   Feature already supported
Emergency button   Feature already supported

Tracking features
Tracking modes Interval
Smart power consumption   Feature already supported
Odometer
ECO driving
Location by Cell ID   Feature already supported

Events monitoring
Battery low   Feature already supported
Device switched on/off

Self monitoring
Network signal level
GNSS signal level
GNSS satellites fixed
External power source voltage   Feature can be supported upon request
Internal battery level   Feature can be supported upon request

CAN/OBDII reading
Check engine light

Remote management
Server connection setup over SMS   Feature already supported
Device ID type Static (IMEI)
Remote device configuration Yes (over GPRS)
Forced GNSS location update over SMS   Feature can be supported upon request
Forced LBS location update over GPRS
Message exchange format ASCII
Firmware update OTA

Certification
CE
FCC
