Coban GPS306 OBD

Coban306

Connection Parameters

Server Address server.gp-s.net
Server IP 136.244.102.118
Server Port 47750
Supported Functions
95%
Automated Activation
100%
Server Uptime
99%

This product is compatible with our system, if you bought new or already using another gps tracking software you can transfer your device to our system online automatically

Description

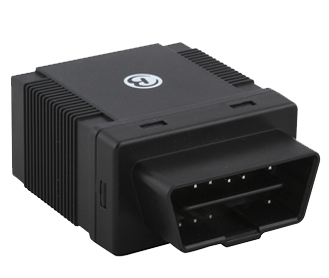

Coban GPS306 is an OBDII tracker. It can be is easily installed into the car diagnostic port.

LOCATION AND TRACKING
GPS306 model is embedded with GPS and doesn?t have support of GLONASS and alternative systems. It either doesn?t support Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

There are only two basic tracking modes, which do not provide too much flexibility: by time interval and by distance.

Also, the tracker supports turnings. It will update the positions automatically to web server once the vehicle changing driving direction over pre set angle (30 degrees) to form a smooth trajectory consistent with the actual road, this function is only effective in GPRS mode.

OBDII DATA
GPS306 can read from OBDII port such data as vehicle speed, engine RPM, coolant temperature, board voltage as well as ?Check engine? (MIL) and DTC error codes. Here is an example of how it looks in GPS tracking system:

Coban-GPS306-OBDII-widget

MOBILE NETWORKS
With Quad-band GSM 2G module GPS306 can be operated all over the world.

EMERGENCY BUTTON
GPS306 has a small SOS button. To send the SOS signal it?s required to hold the button pressed within 3 seconds.

POWER SUPPLY
GPS306 uses OBDII Connector Type B and voltage range 9-40V, which makes possible to install GPS306 both on cars and trucks.

GPS306 also features a built-in rechargeable backup battery. When fully charged it ensures about 1-2 hours of device operation (in normal conditions).

When being unplugged from the OBDII socket the device sends notification to server.

LOCAL AND REMOTE MANAGEMENT
GPS306 tracker can be fully controlled over GPRS, including configuration of tracking modes and controlling outputs. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

You can also configure GPS306 from a PC, but you will require a special serial cable, which is not included into a standard package. No special software is required: device is detected as a flash drive and all configuration can be done by editing a text file on it.

LED INDICATION
GPS306 has two LEDs

Green LED indicates GSM/GPRS mode
Blue LED indicates GPS reception
ADDITIONAL FEATURES
GPS306 features a micro SD slot, so you can install a micro SD card into it and store all data there. Later you can analyze it, using proprietary software.

Also GPS306 features a built-in microphone for acoustic surveillance.

DISADVANTAGES
GPS306 does not detect harsh driving behaviour and towing.

General information
Purpose Vehicle
Installation Not required
Special form factor OBDII Dongle

Housing
Size 64.5x50x27 mm (2.54×1.97×1.06 in)
Weight 60 g (2.12 oz.)

GNSS Location
GPS
Internal antenna (GNSS)
External antenna (GNSS)
Assisted GPS

Connectivity
Cellular network type GSM Quad Band
Cellular network generation 2G
Internal antenna (Connection)
External antenna (Connection)

Interfaces
ACC/Ignition input   Feature already supported

Hardware features
Built-in battery
Battery capacity 200 mAh
Emergency button   Feature already supported
Detach sensor
Non-volatile memory Optional

Hardware extras
Voice listening   Feature can be supported upon request
Emergency button   Feature already supported

Tracking features
Tracking modes Continuous
Smart power consumption
Odometer
ECO driving
Location by Cell ID   Feature already supported

Events monitoring
Battery low   Feature already supported
Device switched on/off

Self monitoring
Network signal level
GNSS signal level
GNSS satellites fixed
External power source voltage   Feature already supported

CAN/OBDII reading
CAN/OBDII reader type   Feature already supported
CAN/OBDII parameters Fuel level, fuel consumption, engine RPM, throttle position, speed, coolant temperature and other
DTC codes reading   Feature already supported
Check engine light   Feature already supported

Remote management
Server connection setup over SMS   Feature already supported
Device ID type Static (IMEI)
Remote device configuration Yes (over GPRS)
Forced GNSS location update over SMS   Feature can be supported upon request
Forced LBS location update over GPRS
Message exchange format ASCII
Firmware update OTA

Certification
CE
FCC
