GalileoSky 4

4 0

Connection Parameters

Server Address server.gp-s.net
Server IP 136.244.102.118
Server Port 47773
Supported Functions
95%
Automated Activation
100%
Server Uptime
99%

This product is compatible with our system, if you bought new or already using another gps tracking software you can transfer your device to our system online automatically

Description

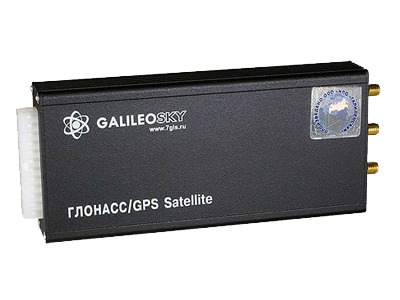

Galileosky 4 is a vehicle GPS/GLONASS tracker specially designed for fleet management as well as personal needs of vehicle and van owners.

It can be installed in OBDII port to read on-board PC data, like fuel level, fuel consumption, engine RPM, throttle position, speed, engine load, coolant temperature, DTC error codes and other.

The device has a wide range of options due to multiple inputs, outputs and interfaces. Also, it is equipped by external GNSS and GPRS antennas.

This model has more inputs and outputs (up to 16) and a double port for SIM cards.

General information
Purpose Vehicle

Housing
Size 157,0×72,0x28,0 mm (6.18x0x2.83x0x1.1×0 in)
Weight 300 g (10.58 oz.)

GNSS Location
Internal antenna (GNSS)
External antenna (GNSS)

Connectivity
Cellular network type GSM 900/1800
Cellular network generation 2G
Internal antenna (Connection)
External antenna (Connection)

Interfaces
1-Wire interface
Number of RS232 interfaces 1
RS232 interface
RS485 interface
ACC/Ignition input
Discrete inputs   Feature already supported
Analog inputs   Feature already supported
Impulse inputs   Feature already supported
Frequency inputs   Feature already supported
Number of inputs (all types) 6
Outputs
Number of outputs 4

Hardware features
Built-in battery
Battery capacity 600 mAh

Events monitoring
Input change   Feature already supported
Towing   Feature can be supported upon request
Car crash   Feature can be supported upon request
Antenna cut off   Feature can be supported upon request

Self monitoring
Network signal level   Feature already supported
GNSS signal level   Feature already supported
GNSS satellites fixed   Feature already supported
GNSS HDOP   Feature already supported
External power source voltage   Feature already supported
Internal battery level   Feature already supported

CAN/OBDII reading
CAN/OBDII reader type   Feature already supported
CAN/OBDII parameters Fuel level, fuel consumption, engine RPM, throttle position, speed, engine load, coolant temperature, DTC error codes and other
DTC codes reading   Feature can be supported upon request

Remote management
Server connection setup over SMS   Feature already supported
Remote device configuration Yes (over GPRS)
Remote outputs control Yes (over GPRS)


I have bought this product from another supplier can i use your system?

Yes exactly. You can use gp-s.net web application and mobile apps with all supported services!

How to activate or transfer my device?

Dont worry about this, we have automated activation system, just turn on your device with your own sim card we will complete the setup automatically

How long take the activation?

Its takes only few minutes, you can make instant activation, register and pay credit online,
