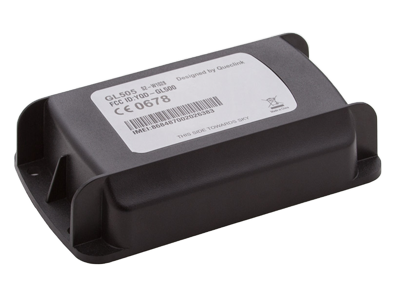

Queclink GL505

Gl505

Connection Parameters

Server Address server.gp-s.net
Server IP 136.244.102.118
Server Port 47764
Supported Functions
95%
Automated Activation
100%
Server Uptime
99%

This product is compatible with our system, if you bought new or already using another gps tracking software you can transfer your device to our system online automatically

Description

Queclink GL505 is a very usefull model with a wide range of options. The intuitive configuration allows to preset the device in sleep or wake-up mode when it would be necessary from customer?s mobile phone. After sending the information about current location the tracker can automatically go to a dormant status.

Queclink GL505 is very simple to control by the customer via GPRS and SMS commands, but need a professional assistance before the first usage.

The difference between GL505 and original GL500 model is the higher waterproof qualities.

General information
Purpose Asset, Personal, Pet, Vehicle
Installation Professional

Housing
Size 80x58x26.8 mm (3.15×2.28×1.06 in)
Weight 65 g (2.29 oz.)

GNSS Location
GPS
GLONASS
Galileo
Beidou
Chipset u-blox
Internal antenna (GNSS)
External antenna (GNSS)

Connectivity
Cellular network type GSM Quad Band
Cellular network generation 2G
Internal antenna (Connection)
External antenna (Connection)

Interfaces
Number of inputs (all types) 1

Hardware features
Built-in battery
Battery capacity 3000 mAh
Internal temperature sensor   Feature already supported
Accelerometer
Normal CR123A type batteries are used.
Tracking features
Smart power consumption   Feature already supported
Location by Cell ID   Feature already supported
Since the device is powered with normal batteies (not rechargeable), it’s recommended to use interval tracking mode (not continuous) mainly.
Self monitoring
Network signal level   Feature already supported
GNSS signal level   Feature already supported
GNSS satellites fixed   Feature already supported
Internal battery level   Feature already supported

Remote management
Server connection setup over SMS   Feature already supported
Remote device configuration Yes (over GPRS)
Forced GNSS location update over SMS   Feature already supported
Forced LBS location update over GPRS   Feature already supported


I have bought this product from another supplier can i use your system?

Yes exactly. You can use gp-s.net web application and mobile apps with all supported services!

How to activate or transfer my device?

Dont worry about this, we have automated activation system, just turn on your device with your own sim card we will complete the setup automatically

How long take the activation?

Its takes only few minutes, you can make instant activation, register and pay credit online,
