Teltonika FM5300

Gm5300

Connection Parameters

Server Address server.gp-s.net
Server IP 136.244.102.118
Server Port 47776
Supported Functions
95%
Automated Activation
100%
Server Uptime
99%

This product is compatible with our system, if you bought new or already using another gps tracking software you can transfer your device to our system online automatically

Description

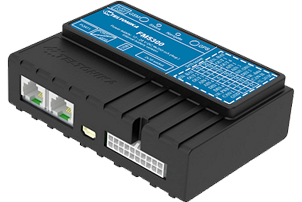

Teltonika FM5300 is advanced GNSS device that works with GPS, GLONASS and Galileo. That fact makes this navigation tracker universal for usage all around the planet with a high-quality signal.

It is suitable for different applications that need a remote control and awareness of the vehicle?s location. It can be used for personal and business usage.

FM5300 can store more than 16000 records with the vehicle status and transmit it via GSM networks. The device can send a signal about driver behavior and performance also with all malfunctions of the vehicle.

The device is equipped by voice communication system.

General information
Purpose Vehicle
Installation Professional
Housing
Size 104.1×76.8×26.8 mm (4.1×3.02×1.06 in)
GNSS Location
Internal antenna (GNSS)
External antenna (GNSS)
Connectivity
Cellular network type GSM Quad Band
Cellular network generation 2G
Internal antenna (Connection)
External antenna (Connection)
Interfaces
1-Wire interface
Number of RS232 interfaces 2
RS232 interface
Discrete inputs Feature already supported
Analog inputs Feature already supported
Number of inputs (all types) 8
Outputs
Number of outputs 4
Events monitoring
Battery low Feature already supported
Input change Feature already supported
Self monitoring
Network signal level Feature already supported
GNSS signal level Feature already supported
GNSS satellites fixed Feature already supported
External power source voltage Feature already supported
CAN/OBDII reading
CAN/OBDII reader type Feature already supported
CAN/OBDII parameters Fuel level, fuel consumption, engine RPM, throttle position and other
Remote management
Server connection setup over SMS Feature already supported
Remote device configuration Yes (over SMS)
Remote outputs control Yes (over SMS)

I have bought this product from another supplier can i use your system?

Yes exactly. You can use gp-s.net web application and mobile apps with all supported services!

How to activate or transfer my device?

Dont worry about this, we have automated activation system, just turn on your device with your own sim card we will complete the setup automatically

How long take the activation?

Its takes only few minutes, you can make instant activation, register and pay credit online,
