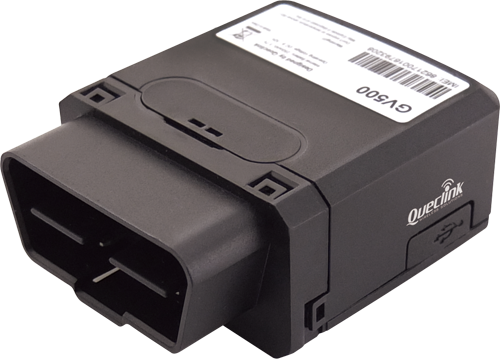

Queclink GV500

GV500 2

Connection Parameters

Server Address server.gp-s.net
Server IP
Server Port 47764
Supported Functions
Automated Activation
Server Uptime

This product is compatible with our system, if you bought new or already using another gps tracking software you can transfer your device to our system online automatically


This device can read a diagnostic data from an onboard PC of the most vehicle models. On this criterion that GPS tracker is considered the best OBDII devices whole. This tracker supports the J1850 PWM, J1850 VPW, ISO 9141-2, ISO 14230, ISO 15765, J1939, CAN_USER1, CAN_USER2 and VW TP2.0 standards.

Also, it has the support of Assisted GPS that have a positive impact on the quality of tracking. It is most important for OBDII devices that are connected under the steering column where GPS signal is weaker.

Advanced power management helps to provide lower power consumption and that device can work for many hours even in active mode.

General information
Purpose Vehicle
Installation Not required
Size 48x25x48, Text, mm, .i.e.: 67x90x20 mm (1.89×0.98×1.89x0x0x0x2.64×3.54×0.79 in)
Weight 42 g (1.48 oz.)
GNSS Location
Chipset u-blox
Internal antenna (GNSS)
Cellular network type GSM Quad Band
Cellular network generation 2G
Internal antenna (Connection)
External antenna (Connection)
Hardware features
Built-in battery
Battery capacity 250, Number, mAh, >0 mAh
Hardware extras
Fuel level sensor reading Feature already supported
Tracking features
Smart power consumption Feature already supported
Odometer Feature already supported
ECO driving Feature already supported
Location by Cell ID Feature already supported
Events monitoring
External power cut off Feature already supported
Towing Feature already supported
Car crash Feature already supported
Self monitoring
Network signal level Feature already supported
GNSS signal level Feature already supported
GNSS satellites fixed Feature already supported
Internal battery level Feature already supported
CAN/OBDII reading
CAN/OBDII reader type Internal, Yes Feature already supported
CAN/OBDII parameters Fuel level, fuel consumption, engine RPM, throttle position, speed, engine load, coolant temperature, DTC error codes and other, Text
DTC codes reading Feature already supported
Remote management
Server connection setup over SMS Feature already supported
Remote device configuration Yes (over GPRS)
Forced GNSS location update over SMS Feature already supported
Forced LBS location update over GPRS Feature already supported

I have bought this product from another supplier can i use your system?

Yes exactly. You can use gp-s.net web application and mobile apps with all supported services!

How to activate or transfer my device?

Dont worry about this, we have automated activation system, just turn on your device with your own sim card we will complete the setup automatically

How long take the activation?

Its takes only few minutes, you can make instant activation, register and pay credit online,
