TopFlyTech T8806

Description

TopFlyTech T8806 device is designed for vehicle tracking, including fleet management applications. In comparison to T8803 PRO this model features analog inputs for fuel detection and a two-way audio.
Appearance and package content

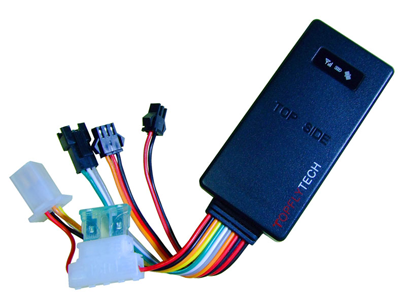

T8806 is compact and easy-to-install tracker without external antennas. Unlike T8803 PRO, this model T8806 is not waterproof.

The package contents:

GPS tracker
One digital input and two analog inputs extension line (170 cm)
Sponge double-side adhesive tape
Power supply extension line (170 cm)
Also as an option, manufacturer offers:

Engine block relay
Microphone and SOS line
Speaker extension line
Location and tracking
T8806 is embedded with GPS and doesn?t have support of GLONASS and alternative systems. It neither supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

T8806 model supports such tracking models as time/interval tracking.

Also you need to connect Ignition/ACC wire, otherwise, the location service will not provide coordinates correctly.

Mobile networks
With Quad-band GSM 2G module T8806 can be operated all over the world.

Power supply
External power supply might be 6-36V, which makes it possible to install T8806 both on cars and vans.

T8806 also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).

Remote management
TopFlyTech T8806 tracker is fully controlled over GPRS/IP channel, including tracking mode settings and outputs control.

There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication
T8806 has two LEDs:

Red LED indicates GSM/GPRS mode[/list] Blue LED indicates GPS reception[/list] The LEDs light goes out automatically in five minutes after the device is switched on.
