Topten TK510

Topten Tk510

Connection Parameters

Server Address server.gp-s.net
Server IP 136.244.102.118
Server Port 47750
Supported Functions
95%
Automated Activation
100%
Server Uptime
99%

This product is compatible with our system, if you bought new or already using another gps tracking software you can transfer your device to our system online automatically

Description

Product Description

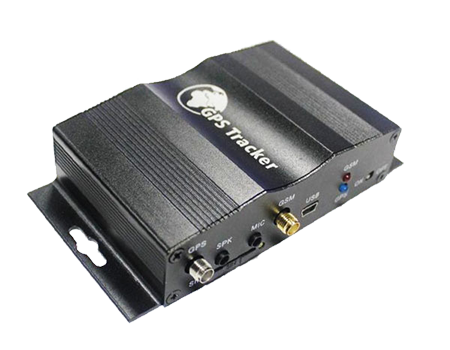

TK510 GPS Vehicle tracker is an advanced & cost-effective solution for vehicle security, real-time tracking & fleet management.

Features
Topten TK510 is an advanced and high-cost effective GPS tracker with ARM9 high speedy microprocessor.

It has the following functions:

Camera for snapping & monitoring via MMS, email or platform;
RFID car alarm system with long-distance tag;
Crash alarm, fuel leaking alarm, speed limiter & fatigue driving alarm.
Package content
The package contents:

GPS Tracker
GSM antenna 1pc
GPS antenna 1pc
SOS button 1pc
Relay 1pc
Wiring 1pc
Location and tracking
TK510 tracking is based on GPS signals only. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Tracking modes in TK510 model are

time/interval tracking
direction variation tracks
distance interval tracks
Also it has an option for SMSreports on time interval.

Mobile networks
With Quad-band GSM 2G module TK510 can be operated all over the world.

Power supply
External power supply might be 9-45V, which makes it possible to install TK510 both on cars and vans.

TK510 also features a built-in rechargeable backup battery. When fully charged it ensures about 4-6 hours of device operation (in normal conditions).

Interfaces
TK510 provides rich opportunities for connecting external equipment, including 4 analog/digital connectors for multi fuel sensor monitoring, camera for snapping & monitoring via MMS, email or platform, RFID car alarm system with long-distance tag, crash alarm, fuel leaking alarm, speed limiter & fatigue driving alarm

More detailed information about inputs and outputs of the device can be found in ?Specifications? tab.

Remote management
TK510 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

Also it is fully configurable via USB cable using proprietary software.

LED indication
TK510 has LED indication for GPS and GSM status.

General information
Purpose Vehicle
Installation Professional
Housing
Size 110x80x30 mm (4.33×3.15×1.18 in)
Weight 180 g (6.35 oz.)
GNSS Location
GPS
Internal antenna (GNSS)
External antenna (GNSS)
Assisted GPS
Connectivity
Cellular network type GSM Quad Band
Cellular network generation 2G
Internal antenna (Connection)
External antenna (Connection)
Interfaces
ACC/Ignition input Feature already supported
Discrete inputs Feature already supported
Analog inputs Feature already supported
Number of inputs (all types) 5
Outputs Feature already supported
Number of outputs 5
Hardware features
Built-in battery
Battery capacity 850 mAh
Emergency button Feature already supported
Engine block relay Feature already supported
Non-volatile memory
Hardware extras
Fuel level sensor reading Feature already supported
Camera Feature already supported
Voice listening Feature already supported
Emergency button Feature already supported
Tracking features
Tracking modes Continuous
Location by Cell ID Feature already supported
Events monitoring
Battery low Feature already supported
Remote management
Server connection setup over SMS Feature already supported
Device ID type Static (IMEI)
Remote device configuration Yes (over GPRS)
Remote outputs control Yes (over GPRS)
Certification
CE
FCC

I have bought this product from another supplier can i use your system?

Yes exactly. You can use gp-s.net web application and mobile apps with all supported services!

How to activate or transfer my device?

Dont worry about this, we have automated activation system, just turn on your device with your own sim card we will complete the setup automatically

How long take the activation?

Its takes only few minutes, you can make instant activation, register and pay credit online,
